Products — Daquire, DAXES & DAQ Systems

Engineered for Accuracy & Reliability

At Computer Controlled Solutions, we know that in the manufacturing and Product Acceptance Testing field, accuracy and reliability of your equipment is key. We specialise in test equipment for the automotive and aerospace industries.

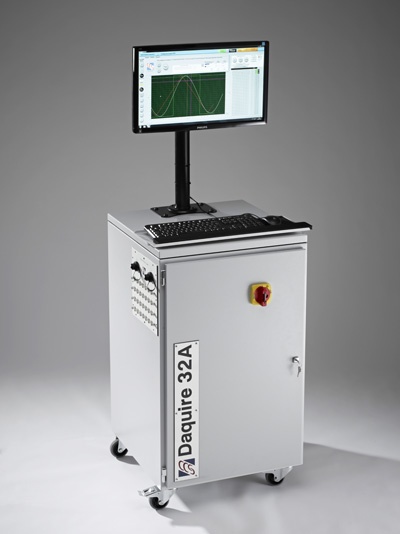

The Daquire®

The Daquire® real-time acquisition system is designed to provide simple but flexible data acquisition combined with the unique ability to capture and analyse data in parallel.

With an easy to follow "Acquire → Analyse → Report" structure, the Daquire uses NI cRIO hardware with onboard FPGA for static or mobile systems, supporting analogue, digital, temperature, encoder, vibration, GPS, CAN/LIN bus channels. Built entirely in LabVIEW by our Certified LabVIEW Architects.

Data is saved in DIAdem™ standard format for seamless integration with your existing workflows.

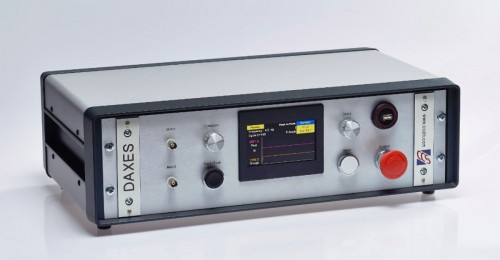

DAXES®

The DAXES® digital axes controller has been designed for simple servo control of up to three axes in a freestanding instrument which you can wire up and get running in minutes without training.

Features multiple frequency ranges, servo control with adjustable alarm limits — providing reliable motion control for your test applications.

The upgrade: DaqBoxLVDT

Now in build, the DaqBoxLVDT is the next generation of the DAXES box. It measures LVDT and RVDT transducers and drives a servo valve or electric actuator in closed loop from one bench instrument, with front-panel or browser control over WiFi, logging to a USB memory stick and live data streaming on the Daquire® acquisition core.

8 kHz oversampled acquisition, 165 µV rms measured input noise (15.1 effective bits)
Two-channel LVDT/RVDT excitation and conditioning, matched to 0.1%, demodulated at 8 kHz
Servo valve current drive at ±32 mA or ±80 mA, plus four analogue outputs
USB-C and WiFi, over-the-air updates, traceable per-channel calibration

Read the announcement →

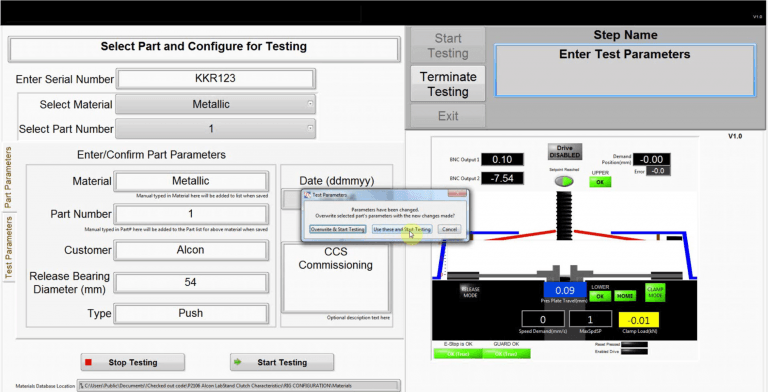

LabStand for Clutch Testing

Automated test solution for automotive clutch testing with full operator guidance and the latest transducer technology.

LabStand provides a standardised, repeatable test environment that reduces operator variability and improves quality assurance.

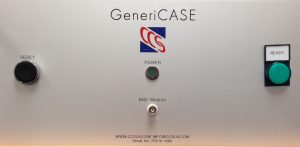

Genericase Testing Solution

A portable enclosure for flexible component testing — expandable and future proof. The Genericase allows you to configure a test system that can be adapted as your requirements evolve.

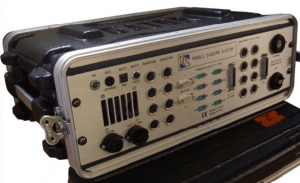

Mobile Daquire System

High-speed acquisition for engine vibration and torsional analysis. The Mobile Daquire brings the power of our data acquisition platform to field and in-vehicle applications.

In-Vehicle Data Acquisition

ECU signal analysis system for comprehensive in-vehicle data capture. Developed in partnership with Bentley Motors, this system enables real-time ECU monitoring and diagnostics.

Two fully qualified Certified LabVIEW Architects • NI Alliance partners since 1994 • FPGA & TestStand experts
